Our Beyond range redefines adventure, blending rugged durability with sustainable living solutions. With innovative designs and quality craftsmanship, our Beyond range offers the freedom to roam off the beaten path while enjoying the comforts of home.

Available in both 2 and 4 berth configurations.

our flagship Beyond range

 £125,000

from

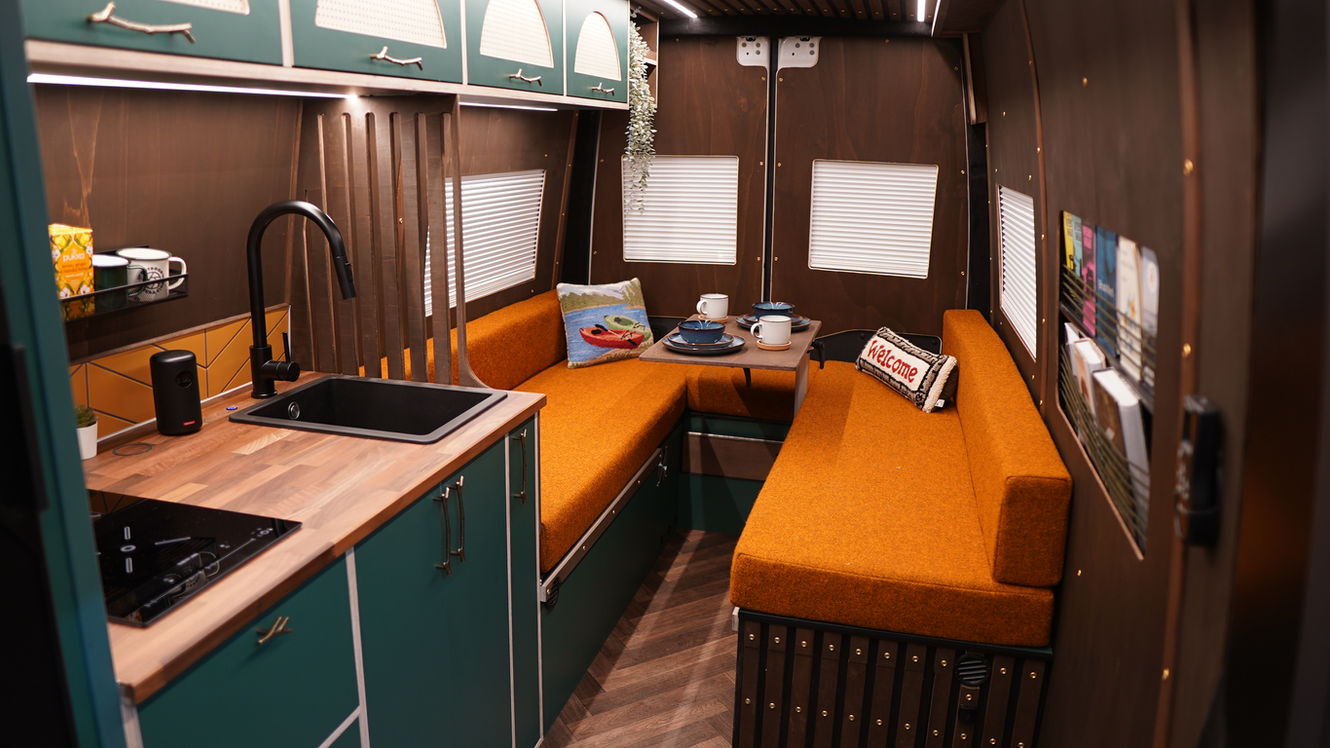

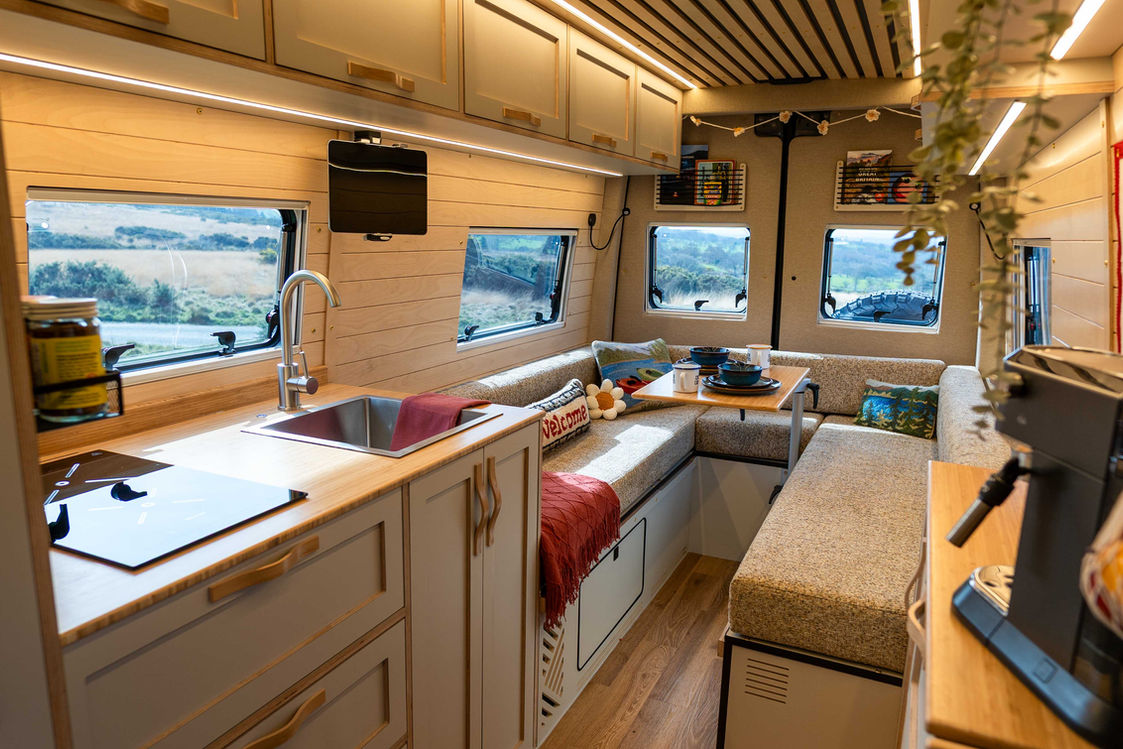

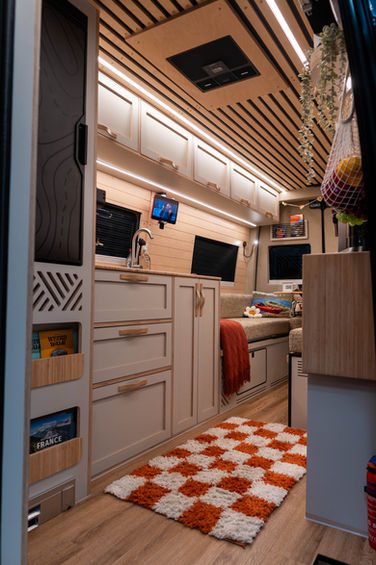

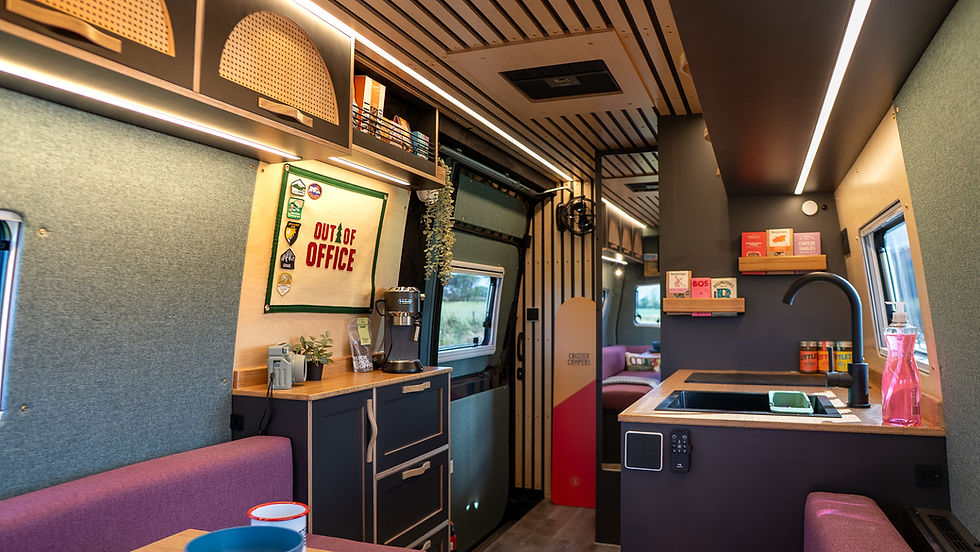

Escape the confines of conventional living with Beyond2 which features a cozy 2 berth layout and a versatile U-shaped sofa that effortlessly converts into a full-size bed.

Designed for the adventurous soul, this campervan offers the perfect blend of open-space and storage, allowing you to roam untethered while still enjoying the comforts of home.

sub 3.5t     2 BERTH     OFF-GRID

groundbreaking

sub 3.5t

2 berth

*Can be driven with a standard UK drivers license

sub 3.5t

groundbreaking

2 berth layout

Beyond2 Specifications

    • Electric Parking Brake with hold function

    • 10.25-inch touchscreen with MBUX multimedia system

    • 3 years of free map updates

    • Exterior heated mirror and electric adjustable

    • 9G-Tronic automatic gearbox

    • LED Performance Headlights

    • Digital instrument cluster with colour display

    • Front additional cupholders

    • Partial LED tail lights

    • 250A Uprated Alternator

    • Comfort co-driver & drivers seat

    • Arm rest for co-driver & driver seat

    • Heated seat for co-driver & driver

    • Artico synthetic leather black for co-driver & driver seat

    • Electric operation of sliding door

    • Keyless operation

    • Fog lamps with cornering function

    • Blind spot assist

    • Rain Sensor

    • Body raised suspension

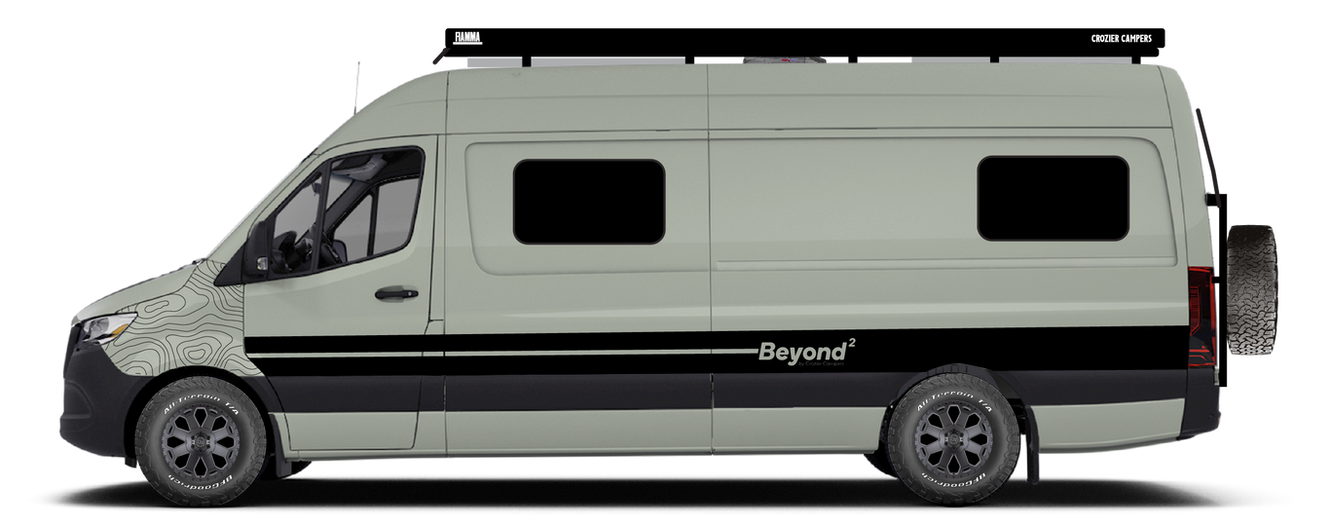

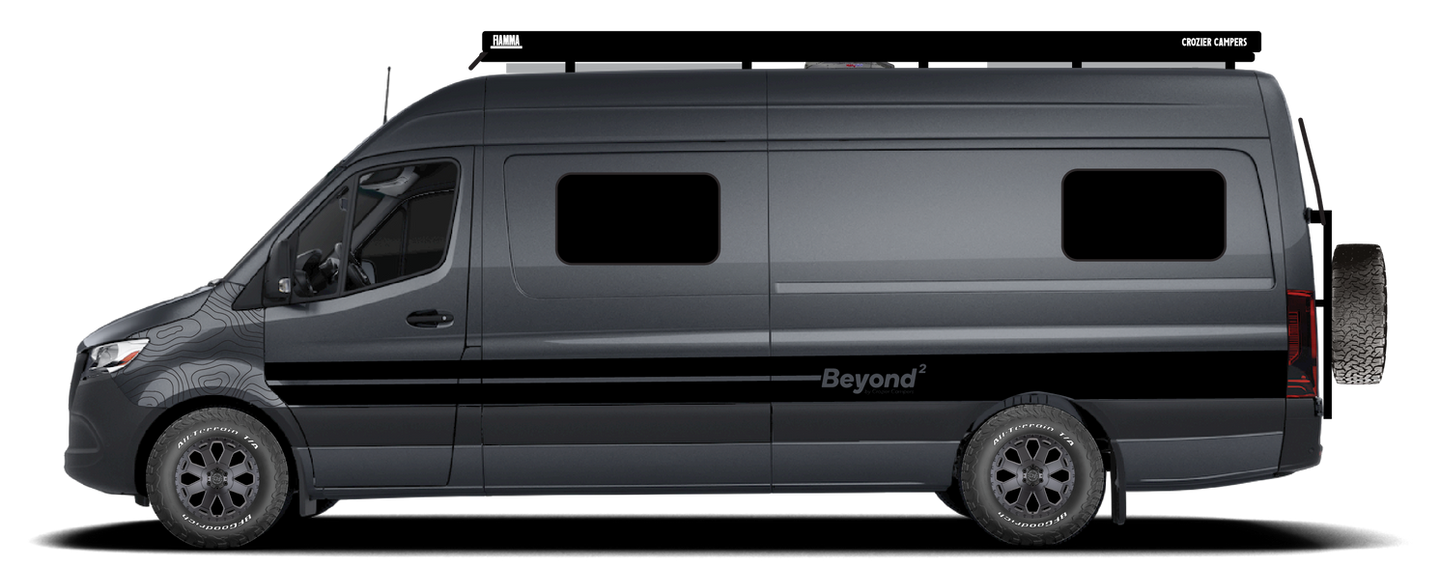

    Mercedes-Benz Sprinter 317 RWD L3 H2 - PREMIUM 3.5T

    • Choose from a range of interior finishes, materials and colours

    • Thermal & acoustic insulation throughout the vehicle

    • Sound deadening throughout the vehicle

    • Double glazed acrylic radius flush black 90 degree opening windows with built in black out blinds, fly screens and locking hinge mechanisms.

    • MaxxFan deluxe clear fan which can both intake and exhaust and also has the ability to be used in all weathers and even whilst driving (Great for pets!)

    • Dimmable warm white LED strip lighting throughout the vehicle controllable via wireless remote and can also be upgraded to be used via voice command

    • USB charging points

    • Wireless charging point

    • 3-pin UK 230V charging points

    • 12V auto socket charging point

    • Touch screen controller for electrical system

    • Soft close hinges throughout the vehicle

    • Latching doors, drawers and cupboards throughout the vehicle

    • Removable Lagun pivot table mount

    • Drop down rear barn door bench seating area

    • Horrex Fly screen over sliding door

    • Nebula Capsule Projector & Removable Projector Screen

          Optional Extras:

    • Rear door flyscreen

    • Bespoke carpentry options

    • Choose from a range of fabrics, colours and finishes for all upholstery within the vehicle

    • 5” seating area custom upholstery bespoke to vehicle design

           Optional Extras:

    • Designer fabrics (i.e Harris Tweed)

    • Choose from a range of colours and finishes on the kitchen worktop i.e solid oak, walnut or solid surface Corian

    • Thetford 902 Topline Twin Ring Induction Hob

    • Thetford T2090 90L Fridge with built in freezer

    • Black quartz composite sink & matt black extendable head tap with flow and spray function

    • Pull out removable bin

          Optional Extras:

    • Ninja Air Fryer Oven

    • Nespresso Coffee & Milk Machine

    • Dometic Microwave

    • Bespoke manufactured tile from a range of colours and patterns

    • Stainless Steel Shower Tray with Removable Duck Board (Custom made to match interior design)

    • Roldour Sliding Cartridge Shower Door

    • Rainfall Thermostatic Mixer Shower

    • Thetford 565P Elegance Porta Potti Toilet

    • Internal storage

    • Heating outlet internal for drying towels, wet suits and outdoor gear

    • Maxxfan Deluxe Clear Ventilation

    • Removable drying hanging rack

          Optional Extras:

    • Trelino Evo M Composting Toilet

  • Full off-grid Victron Energy system consisting of the following components:

    • 400AH 12V Victron Energy smart lithium battery bank

    • 3000VA Victron Energy multiplus II

    • 100A Victron Energy buck boost

    • 420W Victron Energy mono solar panels

    • Victron Energy smart solar MPPT

    • Victron Energy cerbo GX

    • Victron Energy GX touch 50 (Central touchscreen control centre)

    • Motorhome WiFi Compact Now 5G Router & Touchscreen Controller

          Optional Extras:

    • Starlink Roam - Price available upon request

    Advanced electrical system (Required for air conditioning):

    • 400AH 24V Victron Energy smart lithium battery bank

    • 5000VA 24V Victron Energy multiplus II

    • 100A Victron Energy buck boost

    • 420W Victron Energy mono solar panels

    • Victron Energy smart solar MPPT

    • Victron Energy cerbo GX

    • Victron Energy GX touch 50 (Central touchscreen control centre)

    • Pundmann 10L 12V/230V Combined Water Heating System

    • Eberspacher 4KW Diesel D3L Air Heating System

    • 90L Underslung Fresh Water Tank

    • 40L Underslung Waste Water Tank

    • Tank Level Sensors for monitoring both tanks on internal screen and remotely via VRM (Remote management)

    • Pressurised Fawo Water Inlet (Hozelock Connection)

    • Fiamma Automatic pressurised Water pump and accumulator

    • Automatic Truma Frost Valve Control (Winter protection from freezing)

    • Automatic drain valves for waste tank (Electronically operated)

    • Particulate filter on fresh water system

    • UV Filter on fresh water system

          Optional Extras:

    • Electronic dump valves for fresh & waste tanks (switch operated)

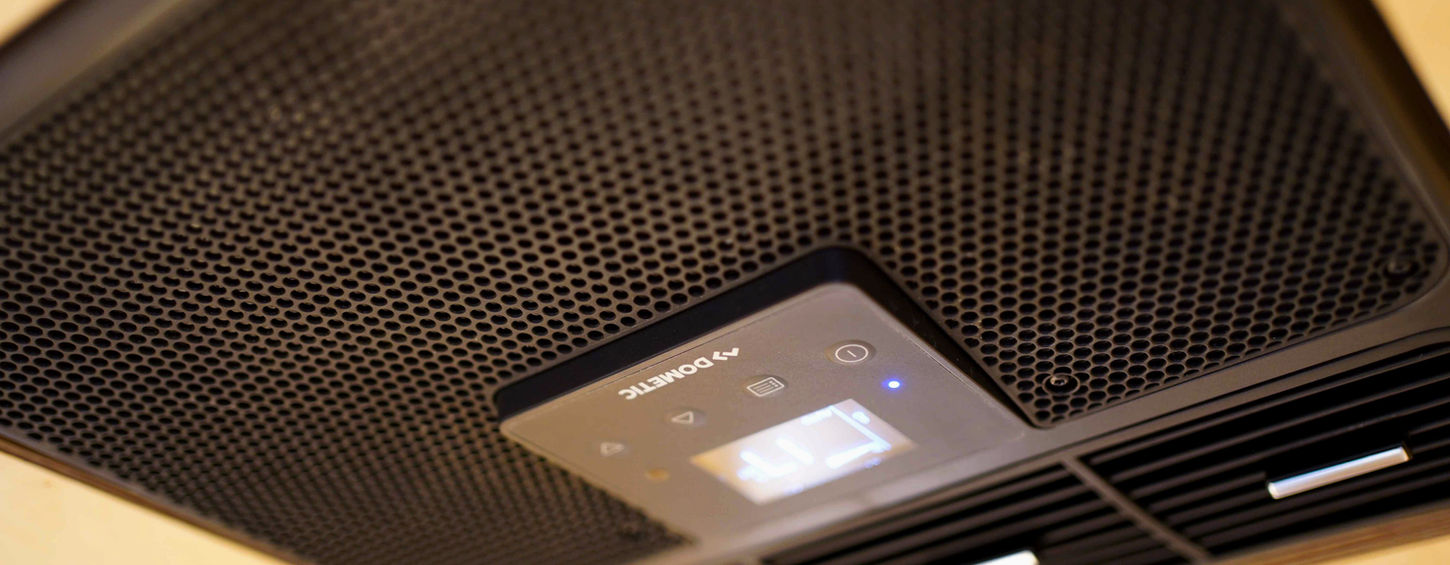

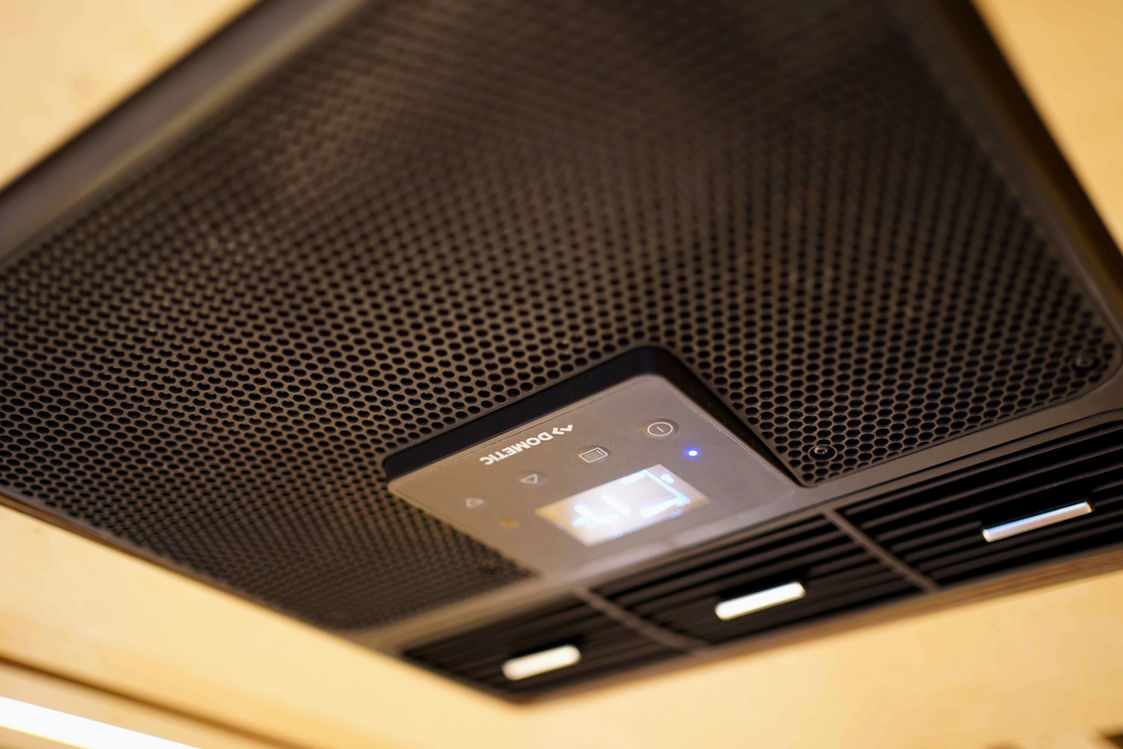

    • Dometic RTX2000 Air Conditioning (Advanced electrical system required)

    • 120L Fresh water tank

    • Fresh water tank heating blanket (for extreme climates)

    • Raptor off-road wheels wrapped in BF Goodrich tyres

    • Independent side mounted outdoor light (Next to sliding door N/S)

    • Independent rear mounted outdoor light (Above barn doors)

    • Fiamma F80s Awning (Size dependent on vehicle)

    • Fiamma F80s Advanced Awning Motor Kit (Mobile controlled & auto tensioning)

    • Bespoke designed vehicle graphics

    • Misutonida TUV Black Bull Bar

    • Bravo Snorkel

          Optional Extras:

    • Automatic electric step for side loading, drivers and passenger doors with underside LED strip (automatically open/retract with door)

    • Dutch Van Parts Rear Exterior Package Deal (Ladder, spare wheel mount, dual bike rack and box storage)

    • Bespoke aluminium roof rack

    • Maxxtrax Sand Recovery System

    • E&P Hydraulic Levelling System

    • VB Semi Air Suspension

    • VB Rear Air Suspension Full Air

    • Vehicle wrapping

    • Instant approval for rental with Quirky Campers due to being a “Quirky-approved converter”

    • 24 month labour warranty on the build

    • 1–5-year warranty on all components

    • Electrical installation certificate (EIC)

    • Media package of the completed vehicle, including video and images

    • Full-scale 3D model, including animation and still images

    • DVLA reclassification paperwork

    • Weighbridge certificate

    • Vehicle GVW rating increasing dependent on specification

    • Paperwork and specifications that may be required for an agreed-upon insurance valuation

    • TUV approval for exterior modifications where necessary

    • Full electrical schematics

    • Full plumbing schematics

    • Crozier Campers Winter Guide/Maintenance Manual

    • Crozier Campers Vehicle Manual/Guide

    • Full manuals and paperwork for all components

Beyond2 cad model

*example CAD model with chosen colours, materials and fabrics.

During the Beyond2 process you will receive a to-scale CAD model of your vehicle. This model serves as a crucial step in the design process, providing you with an in-depth visualisation of the final product. By employing advanced CAD technology, we ensure that every aspect of your vehicle is accurately represented, from its structural dimensions to the aesthetic choices.

  • We begin with an initial consultation to explore your ideas, visions, budget, and specific requirements, and discuss how we can bring them to life. This session also helps us determine if our company is the right fit for your project and if your build aligns with our vision.

    The consultation lasts for one hour and can take place either in person or via video call. While we are happy to accommodate video calls, we particularly recommend an in-person visit. This allows you to tour our workshop, meet our team, and view our current projects firsthand.

  • ​After the initial design consultation, if you decide to proceed with us, we require a payment of £3,000+VAT to secure your slot in our schedule. This fee includes the creation of an initial 3D CAD model, ensuring that we reserve both time and resources for your project.

  • We will proceed by meticulously crafting a precise, to-scale CAD model of your vehicle. This model serves as a crucial step in the design process, providing you with an in-depth visualization of the final product. By employing advanced CAD technology, we ensure that every aspect of your vehicle is accurately represented, from its structural dimensions to the aesthetic choices.

    In this model, you'll gain a comprehensive view of the various materials we intend to use, including their textures and finishes. Color schemes will be detailed, helping you visualize the overall aesthetic appeal of the vehicle. Additionally, the choice of fabrics for the interior will be illustrated, offering insights into the look and feel of the passenger spaces.

    Ultimately, this CAD model serves as a powerful tool for both design validation and client communication, ensuring that your specifications and expectations are met with the highest standards of precision and clarity.

  • ​Once the design is finalized and you are satisfied with all the details, we use this information to provide you with an estimated quote for the build. At this stage, we also draw up an initial contract, outlining the scope, costs, and timeline of the project to ensure everything is clear and agreed upon.

  • Once the design is finalized and the contract is signed, our team will begin constructing your build. We offer a convenient "drive in, drive out" service. Upon completion, your vehicle will be ready for immediate adventure! We typically estimate a completion time of 8-10 weeks.



    However, due to the bespoke nature of our builds, sometimes it may take a bit longer. Our commitment to quality means we never rush a job; we ensure everything is thoroughly tested and meets our high standards before it leaves the workshop.

    Throughout the entire process, you'll be kept fully informed. We provide access to a live folder that includes daily updates with photos and videos of the progress, along with important documents such as invoices and certifications. Additionally, you will receive a transparent breakdown of all costs associated with your build, ensuring complete clarity and accountability.

  • At the completion of your build, the exciting moment arrives: we hand over the keys to your van! We'll conduct a comprehensive walkthrough to familiarize you with every aspect of your new vehicle, ensuring you know how everything works. Additionally, you'll be provided with a detailed manual that covers all the essentials. This manual includes information on all system designs, from electrical to plumbing, giving you a complete understanding of your van's functionalities. This step ensures you're fully prepared and confident to embark on your adventures.

  • When we hand over the van to you, we also initiate a 2-week 'snag period.' This allows you to thoroughly test and experience the van in your daily life, helping you identify if all aspects of the build meet your needs. Should you discover any issues, or wish something had been done differently, simply let us know and we'll book in any changes. Our commitment includes a 12-month labor warranty and a component warranty ranging from 2 to 5 years, ensuring peace of mind with your new van.

    Our relationship with you doesn't end at delivery. We take pride in our exceptional customer aftercare. We maintain ongoing communication with all our clients, building genuine, lasting relationships. Our team is always available to assist you and answer any questions you may have, whenever you need us.
